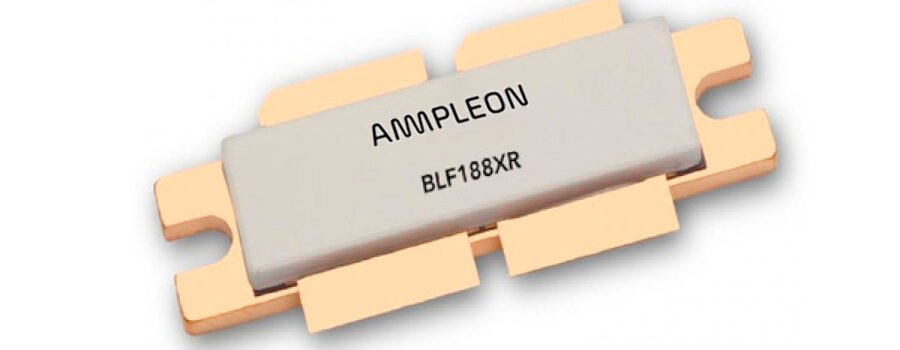

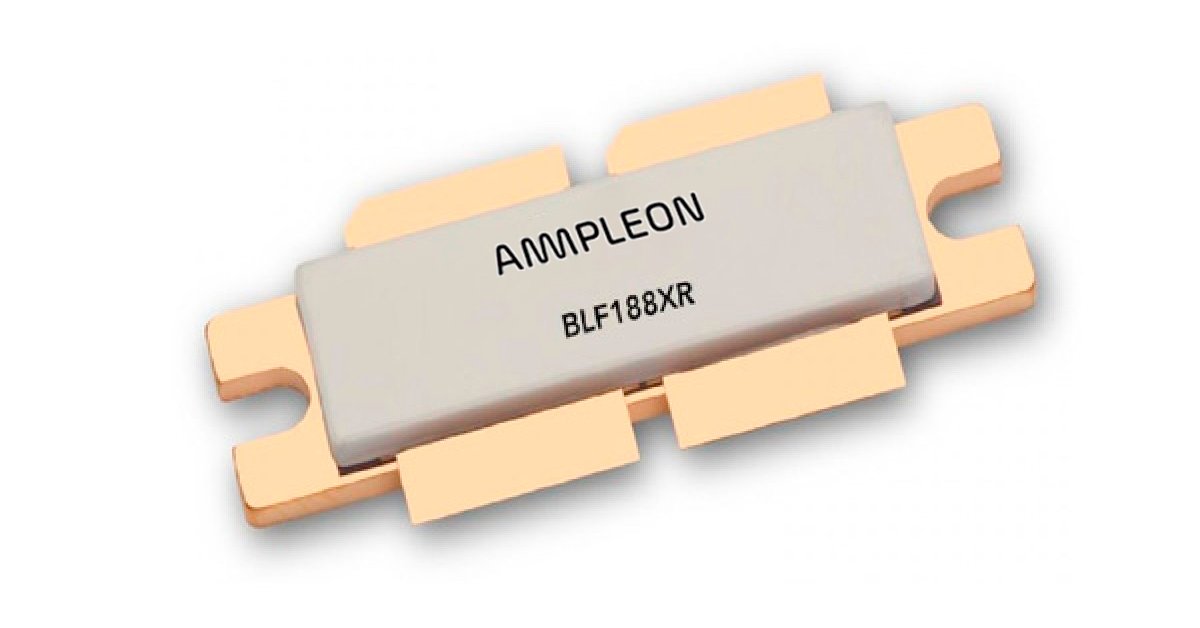

Power LDMOS transistor
A 1400 W extremely rugged LDMOS power transistor for broadcast and industrial applications in the HF to 600 MHz band.
Parametrics
| Symbol | Parameter | Conditions | Min | Typ/Nom | Max | Unit |
|---|---|---|---|---|---|---|
| frange | frequency range | 10 | 600 | MHz | ||
| PL(1dB) | nominal output power at 1 dB gain compression | 1400 | W | |||
| Test signal: Pulsed RF | ||||||
| Gp | power gain | VDS = 50 V; PL = 1400 W | 23.2 | 24.4 | dB | |
| RLin | input return loss | VDS = 50 V; IDq = 40 mA; PL = 1400 W | -21 | -14 | dB | |
| ηD | drain efficiency | VDS = 50 V; f = 108 MHz; IDq = 40 mA; PL = 1400 W | 69 | 73 | % | |
Package / Packing
| Type number | Package | Outline version | Reflow-/Wave soldering | Packing | Product status | Marking | Orderable part number, (Ordering code (12NC)) |
|---|---|---|---|---|---|---|---|
| BLF188XR | SOT539A (SOT539A) | sot539a_po | Bulk Pack | Transferred | Standard Marking | BLF188XRU (9340 677 53112) |
Pinning info
| Pin | Symbol | Description | Simplified outline | Graphic symbol |
|---|---|---|---|---|
| 1 | D1 | drain1 |  |  |
| 2 | D2 | drain2 | ||
| 3 | G1 | gate1 | ||
| 4 | G2 | gate2 | ||
| 5 | S | source |
